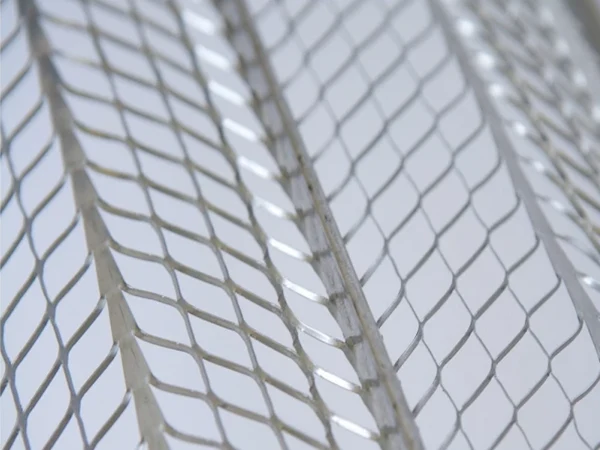

Flat rib lath, also known as permanent formwork mesh, is manufactured through specialized punching and shearing processes. Available in galvanized steel strip or 304 stainless steel, its distinctive fishbone-shaped ribs and uniformly arranged mesh openings, combined with V-shaped reinforcing ribs pressed into the mesh, impart superior rigidity and strength to the formwork.
This product can be freely bent and shaped, serving as a stay-in-place formwork. It features superior mortar retention and acts like a hoop reinforcement, integrating components into a monolithic system while offering seismic resistance – earning high praise in the construction industry.
Our flat rib lath undergoes stringent quality inspections and offers outstanding corrosion resistance, durability, and stability, making it suitable for a wide range of demanding construction environments.
Specifications
| Model | Rib Height (Inch) | Weight | Mesh Sheet (Inch) | Mesh Opening (mm) | Packaging | ||
|---|---|---|---|---|---|---|---|
| Lbs/yd2 | Kg/m2 | Sheets per Bundle | Bundles per Pallet | ||||
| AB-1/8-11-60-600 | 1/8" | 2.75 | 1.48 | 27 × 97 | 11 × 17 | 20 | 25 |
| AB-4.5mm-16-600-900 | 4.28 | 2.32 | 27 × 97 | 8.34 × 3.11 | 20 | 25 | |
| AB-3/8-7-96-584 | 3/8" | 3.4 | 1.83 | 27 × 97 | 11.2 × 5.5 | 20 | 25 |
| AB-7/8-8-100-700 | 7/8" | 6.7 | 3.6 | 27 × 97 | 9.5 × 7.2 | 20 | 25 |
| AB-7/8-8-100-700a | 6.1 | 3.3 | 27 × 97 | 9.5 × 7.2 | 20 | 25 | |
